Description

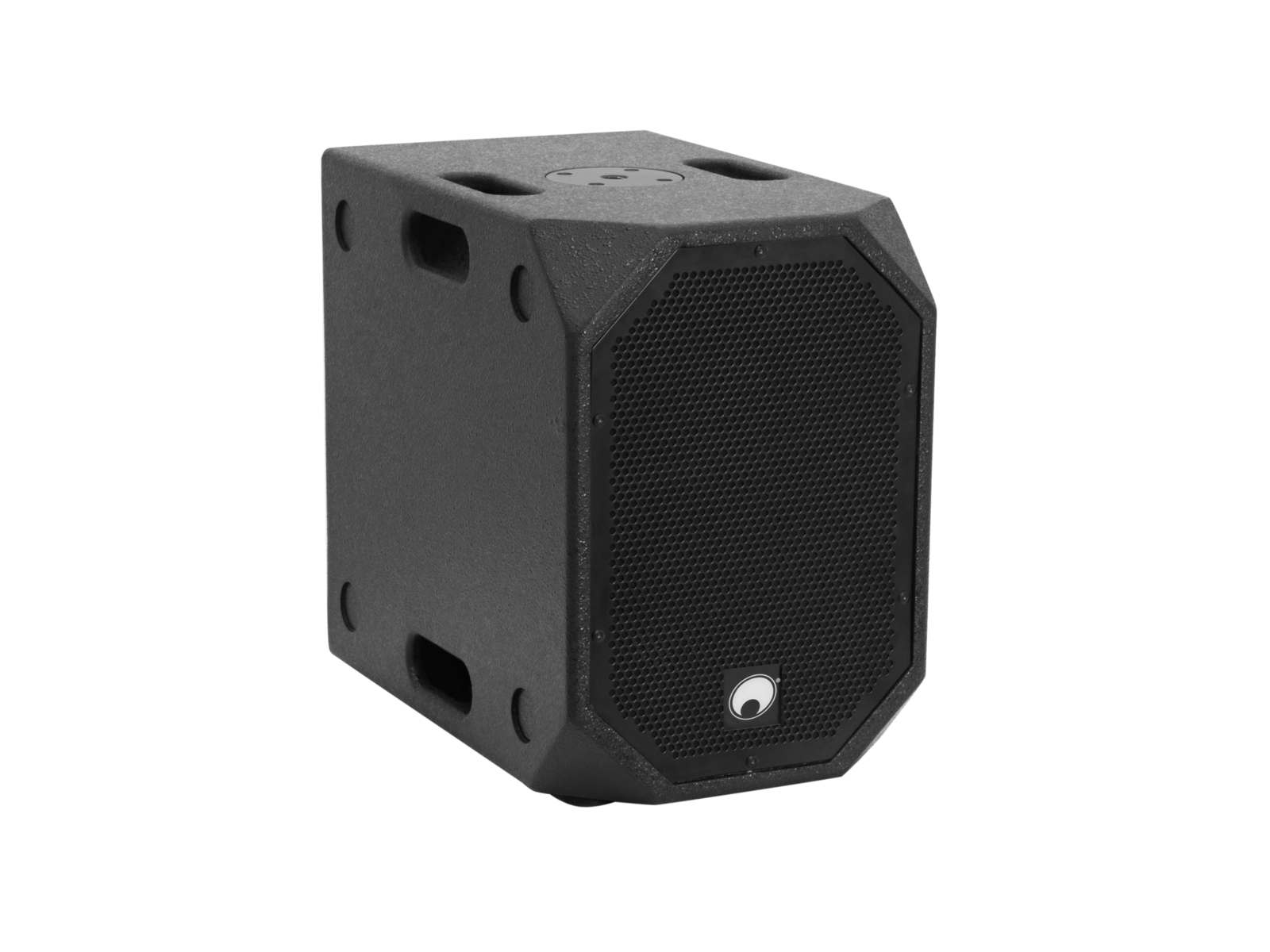

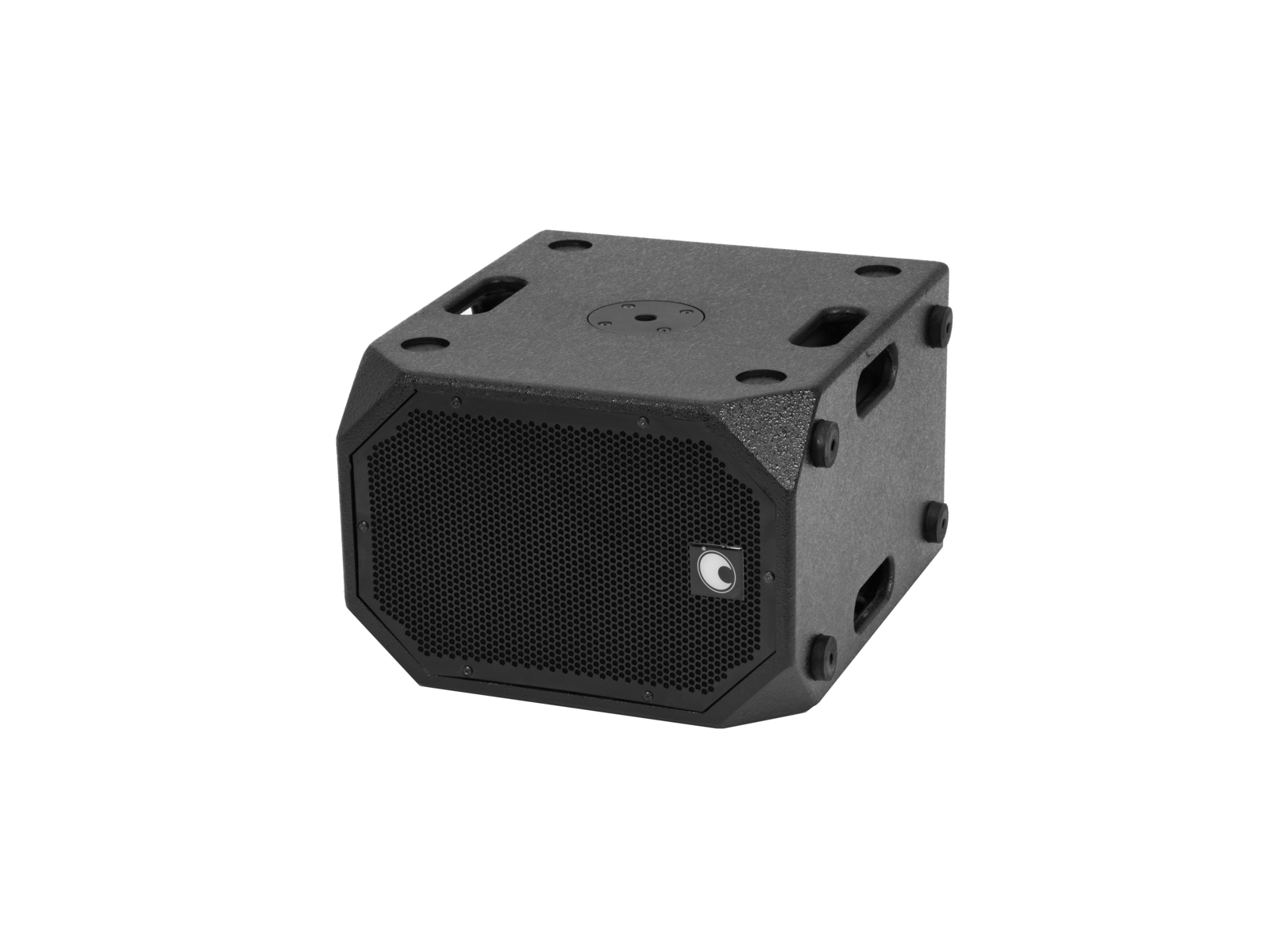

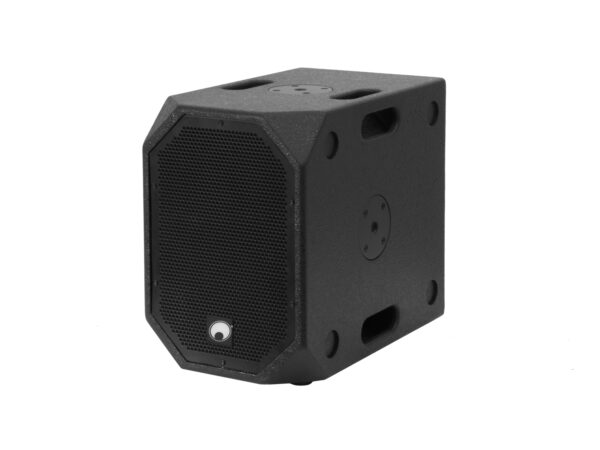

10″ subwoofer with DSP and Bluetooth for the BOB series
- 10″ bassreflex subwoofer with DSP and 900 watts RMS power
- Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- DSP-controlled class D amplifier (300 W + 2 x 300 W)
- Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- DSP presets: FLAT; DJ; LIVE; SPEECH
- The device is cooled by passive convection cooling
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- Black metal grille with acoustic foam
- 4 Rugged carrying handles
- For application areas such as: Mobile djs / entertainer; Trade fair and shop fitting; installation; home entertainment; restaurants, bars and hotels; product presentations and lectures
Scope of delivery
- 1 x bass
- 1 x user manual
- 1 x power cord
- 2 x speaker cable
- 4 x foot
- 4 x screw
- 1 x declaration of conformity
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1060 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| Power: | Rated: 1x 300W RMS LF Rated: 2x 300W RMS HF |
| Frequency range: | 45 – 250 Hz |
| Sensitivity: | 100 dB |
| Max. SPL: | 125 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; LIVE; SPEECH |
| Cooling: | Passive convection cooling |
| Control: | Bluetooth |
| Bluetooth device name: | Omnitronic BOB |
| Range: | Bluetooth: range up to 10m in buildings |
| Attachment system: | 2x M20 thread |
| Circuitry: | Class D |
| Control elements: | Phase reversal switch |
| Controls: | Softstart; short-circuit; limiter; Overvoltage; overheat; limiter |
| Status LED: | Signal, power, limit, fault, DSP presets |

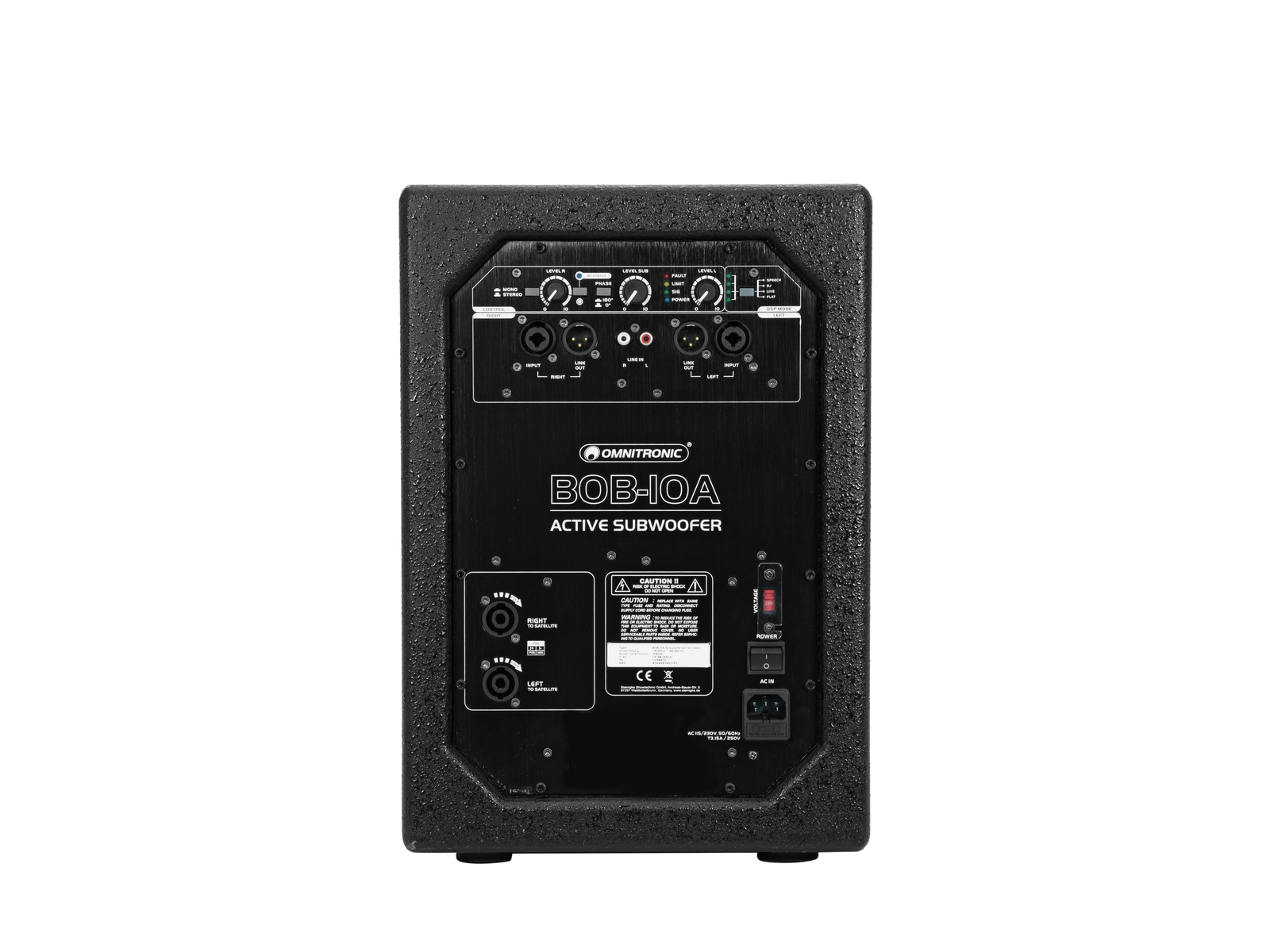

| Connections: | Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: speaker via 2 x speaker built-in socket (F) Output: line via 2 x 3-pin XLR |
| Input channels: | 1 x stereo via combination socket or RCA or Bluetooth, channel control via rotary dial |
| Speaker: | 1 x woofer 10″ Basket material: steel Conematerial: cardboard/paper Voice coil lows 2″ |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Carrying handle: | 4 pc/pcs |
| Material: | MDF (medium density fiberboard), 15 mm |
| Color: | Black, textured coating |
| Dimensions: | Width: 30 cm Depth: 47 cm Height: 43 cm |
| Weight: | 16.95 kg |
| Speaker cable | |
| Cable length: | 3 m |
