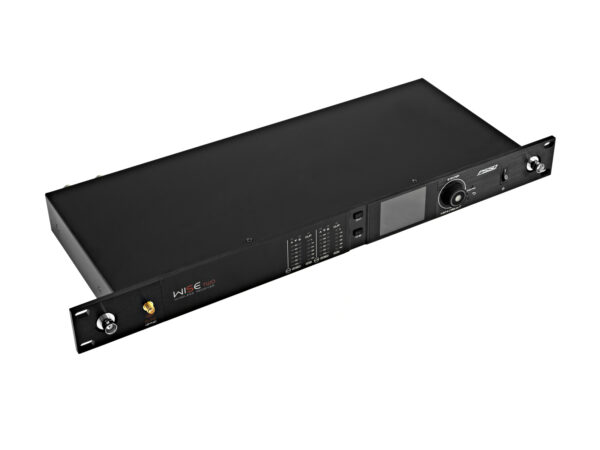

PSSO WISE TWO 2-Channel True Diversity Receiver 518-548MHz

Adviesprijs: 686.25

576,69

Uitverkocht

verzendkosten: € 6,95 Artikelnummer: 13063391 Categorieën: , , Voorraad:

Uitverkocht

Levertijd: 2-3 werkdagen
Deel Via:

Beschrijving

License-free true diversity wireless receiver with 2.4GHz iSync control management

  • Professional multifrequency wireless receiver with true diversity reception for stage use
  • High-grade components and intelligent features ensure best performance and high reliability
  • Ideal for large multi-channel systems (parallel operation possible up to 26 systems)
  • 100 preset channels in 10 channel groups
  • 2.4 GHz iSync – real-time synchronization and monitoring
  • Automatic frequency setup
  • Pilot frequency squelch technology delete wireless RF interference
  • Multifunctional jogdial for menu settings
  • Lock function for prevents undesired changes to settings
  • Mic/line selector switch
  • 2 detachable BNC antennas allow for use with external antenna divider
  • USB port for software updates
  • 2 receivers can share a single power adapter
  • Multicolor LCD display
  • UHF 518 – 548 MHz License-free and approved in large parts of Europe
  • Operating range up to 60m with line-of-sight
  • (19″) 48.3 cm rack installation 1 U

Package contents

  • 1 x receiver, 1 x external mains adapter, 1 x power cord, 3 x antenna, 2 x bNC cable, 1 x jack cable, 1 x adapter cable, 4 x foot, 2 x holder, 2 x windshield, 1 x user manual, 1 x declaration of conformity, 4 x battery
Type: Receiver
Power supply: 100-240 V AC, 50/60 Hz
12-15 V DC 1,5 A
Power consumption: 8 W
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels: 2
Frequency range: 50 – 20000 Hz
S/N ratio: >96 dB
THD: <0,1 % at 1 kHz
Gain: Microphone -32 dB to +4 dB
Output: -32 dB to +4 dB
Display type: Multicolor LCD display
Control elements: Power switch, groundlift selector, menu, encoder
Connections: Antenna via 2 x BNC (F) 12-15 V
Antenna via 1 x SMA (F) mounting version
Output: mic/line via 2 x 3-pin XLR
Output: mic/line via 2 x 6.3 mm jack socket (mono) mounting version
Output: for audio/data link via 2 x BNC (F)
Channels: Microphon chanal: 2 x mono with Mic-line switch via XLR or jack
Frequency band: UHF 518 – 548 MHz
Frequency selection: 100 Switchable frequencies
In 10 groups
Frequencies automatically scannable
Modulation: FM
Range: Range up to 60m with line-of-sight
Switch: Low cut switch
Diversity: True diversity
Material: Metal
Color: Black
Housing design: (19″) 48.3 cm rack installation 1 U
Dimensions: Width: 48 cm
Depth: 27 cm
Height: 4,3 cm
Weight: 2,9 kg

Extra informatie

Afmetingen 0,5300 × 0,3200 × 0,1300 cm
Levertijd 1 dag
