Beschrijving

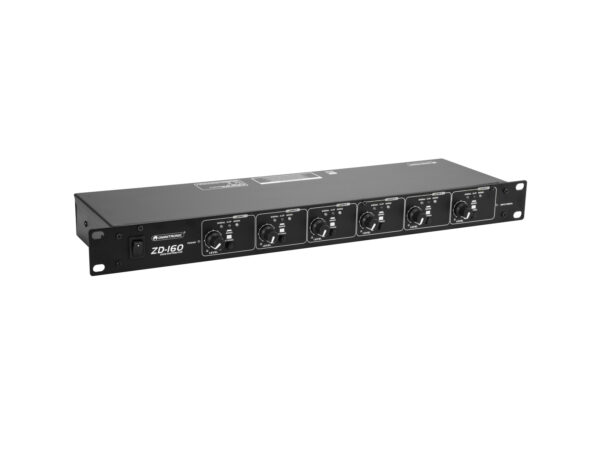

Practical distributor with 1 input and 6 outputs
- Extends every mixer with additional outputs

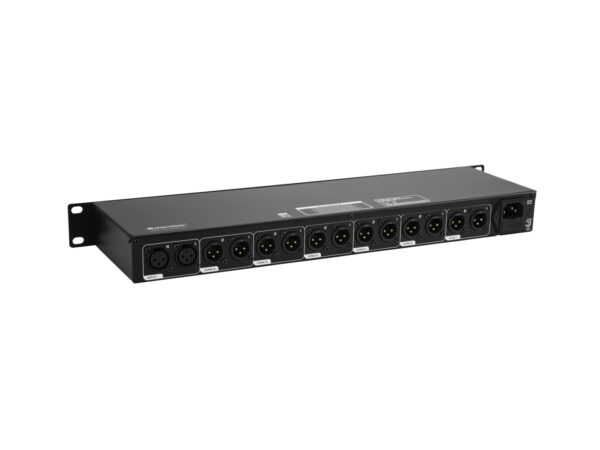

- 1 stereo XLR input
- 6 stereo zone outputs (XLR)
- Each zone with level control and mono switch
- LED display of signal input and mono/stereo mode
- (19″) 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x device, 1 x power cord, 1 x user manual
Power supply: | 115/230 V AC, 50/60 Hz |
Power consumption: | 7 W |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
S/N ratio: | >69 dB |
THD: | <0,2 % at 1 kHz |
Impedance: | Input: 45,1 kOhm Output: 125 Ohm |
Gain: | 15 dB |
Max. level: | Input: +9 dBV Output: +22 dB |
Color: | Black |
Housing design: | (19″) 48.3 cm rack installation 1 U |
Dimensions: | Width: 48,3 cm Depth: 12,6 cm Height: 4,45 cm |
Weight: | 2,33 kg |
Extra informatie
Afmetingen | 0,5300 × 0,2650 × 0,0900 cm |
---|---|
Levertijd | 1 dag |
