Description

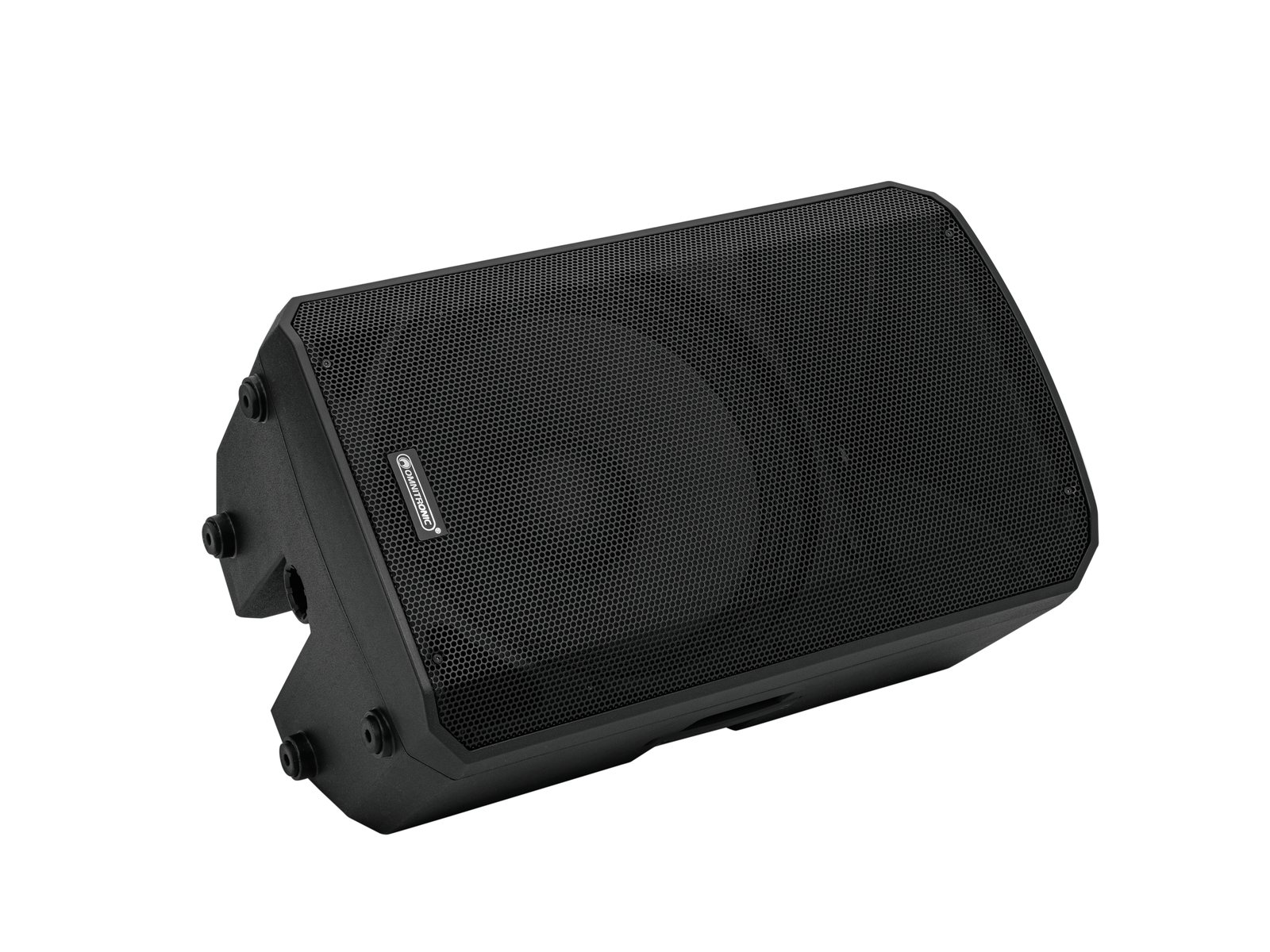

Active 2-way speaker system (15″) with 150 W RMS for PA and DJ applications with audio player and Bluetooth
- 2-way bass-reflex enclosure with 38 cm woofer and 2.5 cm compression driver
- Class A/B circuitry: optimum sound and power at low weight and compact dimensions
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- SD card slot and USB port
- 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
- Line input, RCA
- Mixed output for linking further active speaker systems
- Master control with 2-band EQ
- Control via IR remote control; Bluetooth
- Black metal grille
- 3 Rugged carrying handles
- For application areas such as: Mobile djs / entertainer
- Application possibility: Standing; monitoring; on stand
Scope of delivery
- 1 x compact cabinet speaker
- 1 x remote control
- 1 x battery
- 1 x power cord
- 1 x user manual
- 1 x declaration of conformity
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 500 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Power: | Program: 300W Rated: 150W RMS |
| Frequency range: | 40 – 20000 Hz |
| Max. SPL: | 122 dB |
| Control: | IR remote control; Bluetooth |
| Bluetooth: | Version: 5 with stereo link (TWS) |
| Bluetooth device name: | OMNITRONIC |
| Audio player: | USB + SD + Bluetooth |
| Attachment system: | Flange: Ø 35mm |
| Status LED: | Power, clip |
| Connections: | Input: mic/line via 2 x 6.3 mm plug (unbal.) Input: mic/line via 2 x 3-pin XLR Input: line via 1 x stereo RCA Output: line via 1 x stereo RCA |
| Input channels: | 2 x mono via XLR or jack, channel control via rotary dial 1 x stereo with line-player switch via RCA or player, channel control via rotary dial |
| Equalizer: | Master: 1 x 2-band tone control |
| Music format: | MP3, WAV |
| Number of files: | Max. 999 |
| Available storage media: | USB devices/SD cards (FAT 32) |
| Speaker: | 1 x woofer 15″ with ferrit magnet Voice coil lows 2″ 1 x compression tweeter highs 1″ with ferrit magnet 1 x voice coil compression tweeter highs 1″ Horn vent 1″ |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 3 pc/pcs |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 47 cm Depth: 43 cm Height: 73 cm |
| Weight: | 14.90 kg |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
Additional information
| Dimensions | 0,4300 × 0,7300 × 0,4700 cm |
|---|---|
| Levertijd | 1 dag |
