Description

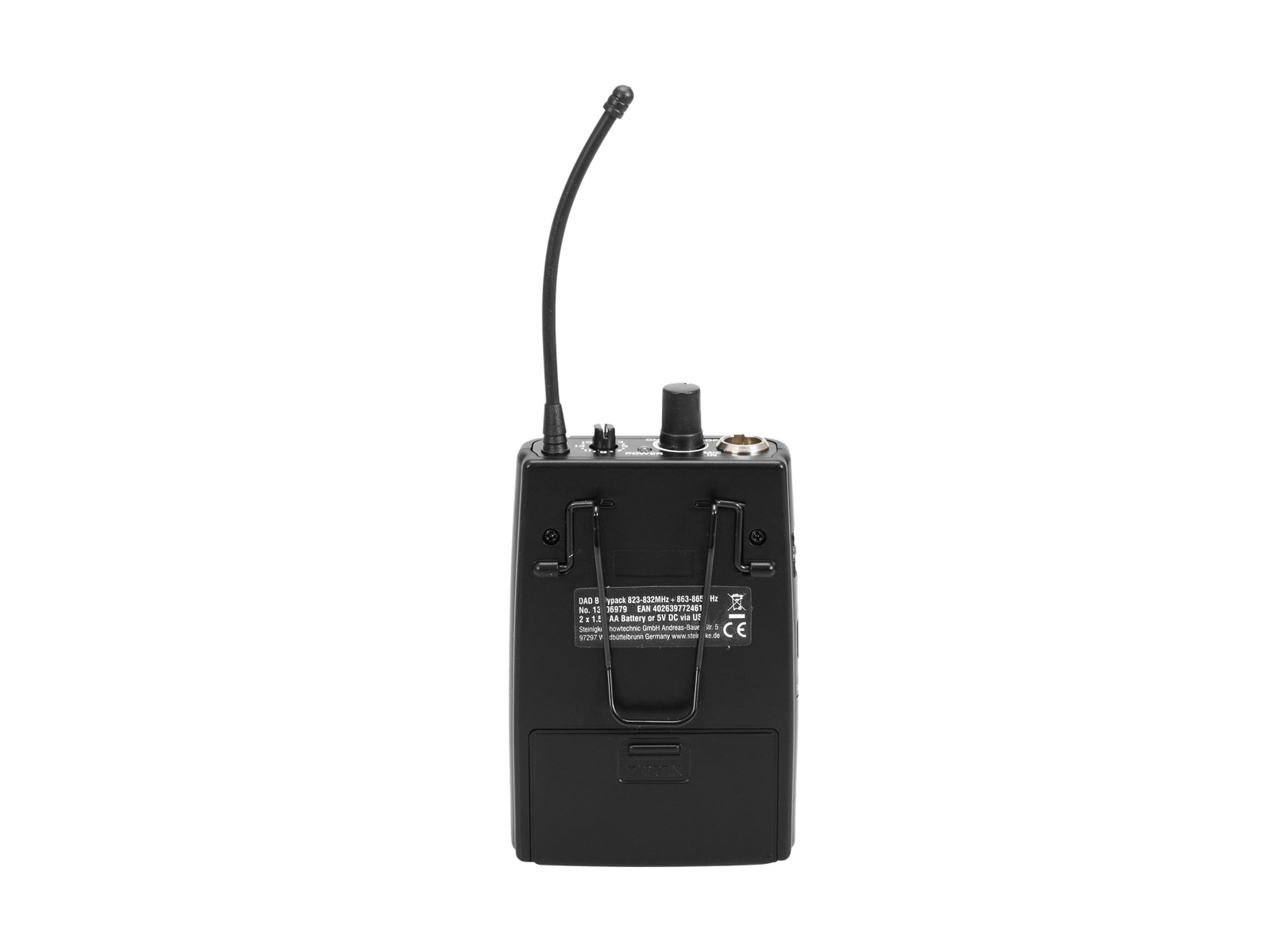

Bodypack transmitter with lavalier microphone
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- Sensitivity adjustable
- LED indicator for battery capacity
- Belt clip
- Headset microphone and lavalier microphone available as accessories
- Operating range up to 30m with line-of-sight
- UHF 823 – 832 MHz License-free and approved in large parts of Europe
- UHF 863 – 865 MHz License-free and approved in Europe
microphone
- Polar pattern: Cardioid
Scope of delivery
- 1 x transmitter
- 1 x microphone
- 1 x USB cable
- 1 x user manual
- 1 x declaration of conformity
| Type: | Pocket transmitter |
| Power supply: | 3V DC Or 5V DC |
| Power connection: | Battery/battery pack Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 – 18000 Hz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 823 – 832 MHz; UHF 863 – 865 MHz |
| Frequency stability: | ± 0.01 % |
| RF power output: | 10 mW |
| Frequency selection: | 16 switchable frequencies |
| Control elements: | Level control, frequency selector switch |
| Connections: | Input: microphone via 1 x 3-pin XLR (M) mounting version Input: line via 1 x 3.5 mm jack (stereo) mounting version |
| Switch: | On/off switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.7 cm Depth: 2.3 cm Height: 11 cm |
| Weight: | 0.12 kg |
| Microphone | |
| Type: | Lavalier microphone |
| Power supply: | 1.5-10V DC |
| Power connection: | Mains input via Mini XLR (F) 3-pin |
| Cable length: | 1 m |
| Capsule type: | Condenser |
| Polar pattern: | Cardioid |
| Sensitivity: | -37 dB |
| Material: | Metal |
| Color: | Black |
| Weight: | 0.018 kg |
| USB cable | |
| Cable construction: | Power cable |
| Cable length: | 0.8 m |
| Plug A: | 1 x USB, type A |
| Plug B: | 1 x USB C (M) |
