Beschrijving

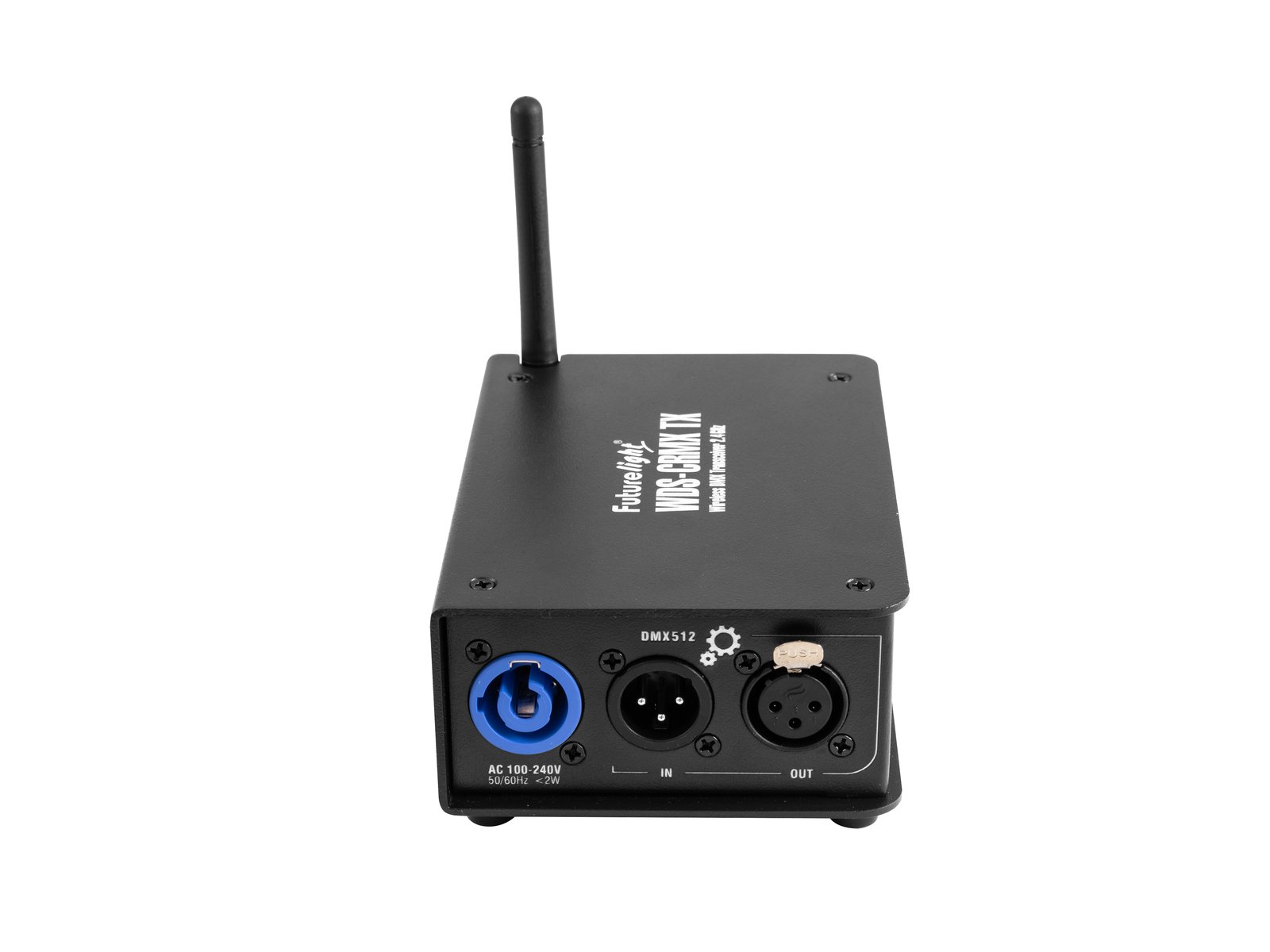

Wireless DMX system (2.4 GHz) – compact transceiver with CRMX unit
- Transceiver, to be used as transmitter or receiver
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Multicolored LED indicator
- Control via CRMX by LumenRadio; W-DMX by wireless solution
- Operating range up to 600m with line-of-sight
- Up to 10 transmitters can be operated in parallel without interference
- With a KENSINGTON LOCK theft protection
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 2 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Device fuse: | T 1 A fuse fix in power supply |
| DMX channels: | Input 512 Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | CRMX by LumenRadio; W-DMX by wireless solution |
| Range: | Range up to 600m with line-of-sight |
| Carrier frequency: | 2.4 GHz |
| Parallel mode: | Max. 10 transmitter |
| Antenna gain: | 3 dBi |
| Modulation: | GFSK |
| Attachment system: | M10 thread |
| Status LED: | DMX, level meter |
| Color: | Black |
| Theft protection: | KENSINGTON LOCK |
| Dimensions: | Length: 14.1 cm Width: 9.8 cm Height: 5.6 cm |
| Weight: | 0.70 kg |
Aanvullende informatie
| Afmetingen | 0,0800 × 0,2500 × 0,1850 cm |
|---|---|
| Levertijd | 1 dag |
