EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2
EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2 - Afbeelding 2
EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2 - Afbeelding 3
EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2 - Afbeelding 4
EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2 - Afbeelding 5

EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

Adviesprijs: 501.89

€421,75

verzendkosten: € 6,95 Artikelnummer: 51928765 Categorieën: , , Voorraad: Levertijd: 2-3 werkdagen
Deel Via:

Beschrijving

Control unit for EUROLITE LED Pixel Ball 360° 1m MK2

  • Series connection of 6 strings per output possible
  • Up to 150 pixel balls per bar can be controlled
  • 30 integrated show programs
  • Control via stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
  • DMX fail mode (hold; blackout)
  • Monochrome OLED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • Interface
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; wedding/gala/events; installation; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended; wall mounting

Scope of delivery

  • 1 x device
  • 1 x user manual
  • 1 x power cord
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 130 W
Protection class: Protection class I

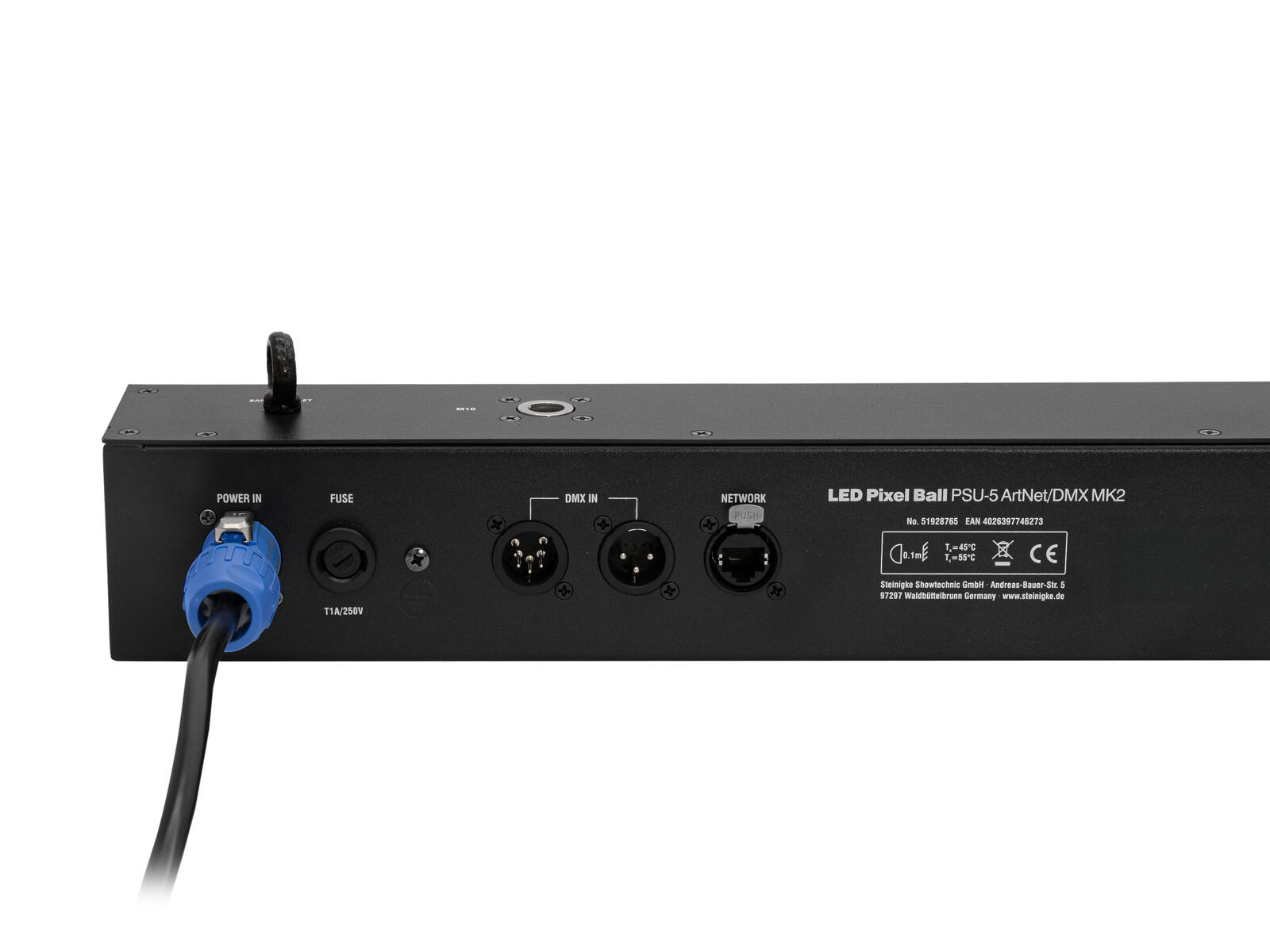

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction: 3 x 1.0 mm² H05VV-F
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 1 A fuse replaceable
DMX channels: 3; 5; 7; 10; 15; 19
DMX input: 3-pin XLR (M) mounting version
5-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
5-pin XLR (F) mounting version
Network connection: Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
DMX fail mode: Hold; blackout
Housing color: Black
Display type: Monochrome OLED display
USB port: Type A
Use of brands: Built with SEETRONIC connector
Material: Metal
Housing design: Interface
Dimensions: Length: 100 cm
Depth: 7.7 cm
Height: 10.7 cm
Weight: 3.65 kg
Noise classification: Class 0 (no noise at all)

Aanvullende informatie

Afmetingen 0,1750 × 1,0850 × 0,1600 cm
Levertijd 1 dag
