Beschrijving

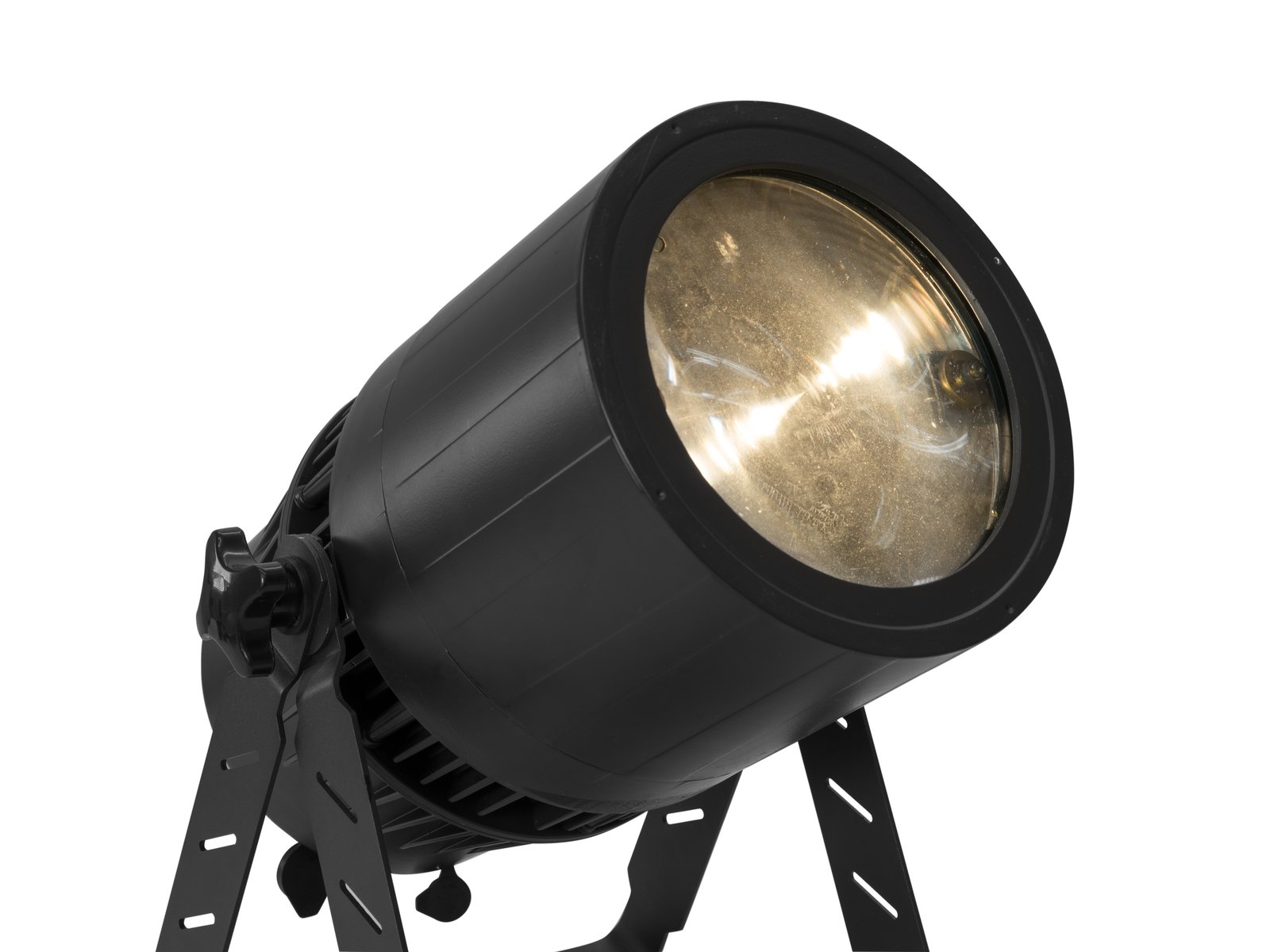

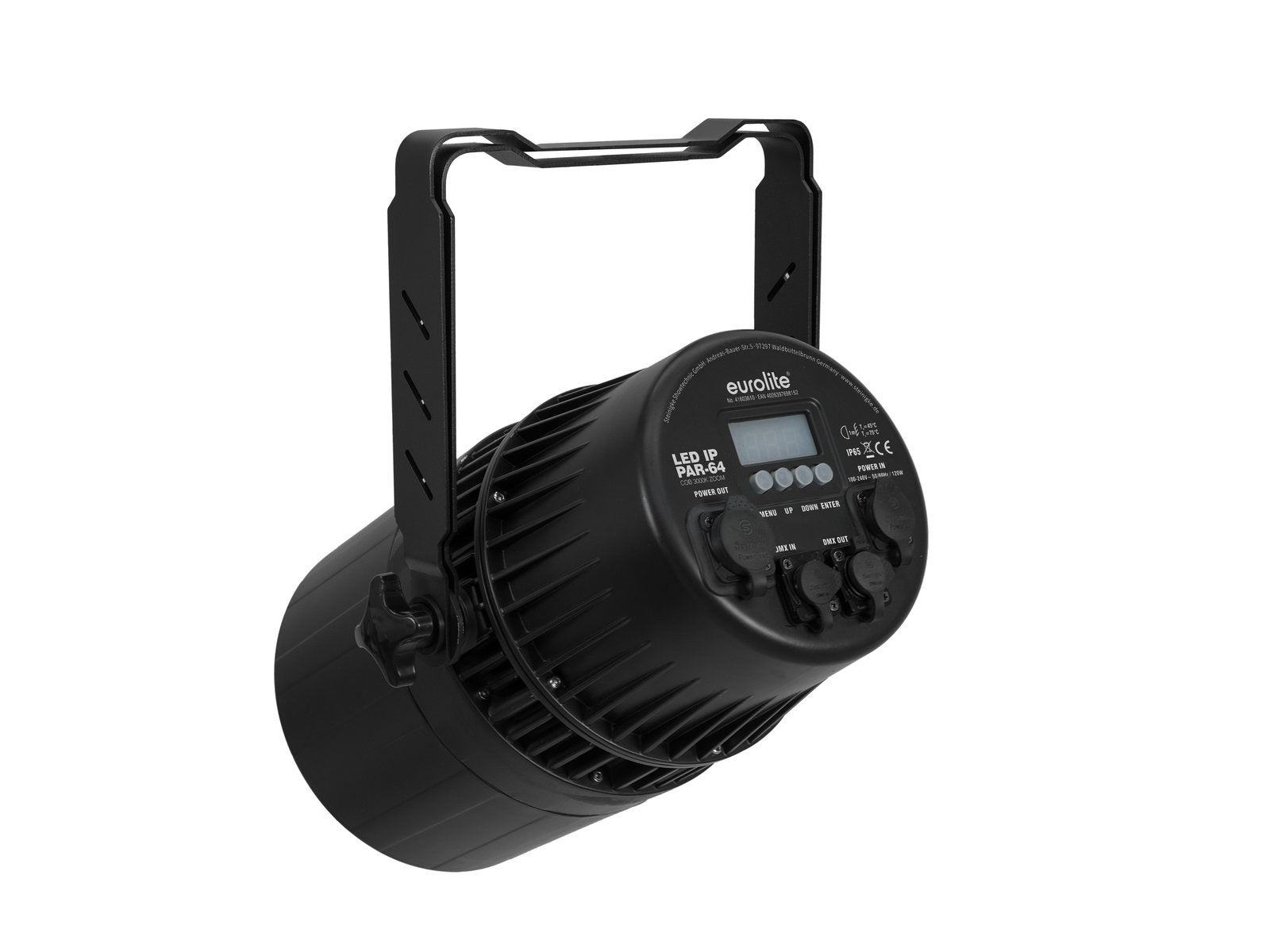

Weather-proof PAR spot, IP65, with warm white 100 W COB LED and motorized zoom
- Light performance comparable to a traditional 1000 W halogen spot light
- Homogeneous light distribution
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Zoom motor-driven
- Dimmer curves with adjustable response; pulse-width modulation variable; Gamma correction adjustable; Dimmer speed (step response) adjustable
- Strobe effect
- The device is cooled by temperature-controlled fan
- Control via DMX; stand-alone; Master/slave function
- Flicker-free
- With a beam angle of 7° – 53°
- Very high color rendering index (CRI)
- With double bracket
- 4 digit 7-segment LED display
- Suitable for outdoor use IP65
- For application areas such as: Theater; Trade fair and shop fitting; Installation; Stage
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain
- Application possibility: Suspended; on tripod
Package contents
- 1 x device, 1 x power cord, 1 x xLR cable, 2 x mounting bracket, 2 x knurled screw, 4 x washer, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | T 6,3 A Fuse fix in power supply |
| Lamp type: | LED lamp |
| LED: | 1 x 100 W COB (chip-on-board) warm white (WW) |
| Color temperature: | 3000K |
| Flash rate: | 0 – 20 Hz |
| Equipment: | Zoom motor-driven |
| DMX channels: | 1; 2; 3; 4 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Temperature-controlled fan |
| Control: | DMX; stand-alone; Master/slave function |
| Preprogrammed in: | Light Captain |
| Beam angle: | 7° – 53° |
| Beam angle (1/2 peak): | 7 – 36° |
| Beam angle (1/10 peak): | 9 – 53° |
| Color rendering index (CRI): | 90 Ra |
| Housing color: | Black matte |
| Attachment system: | Double bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum casting |
| Dimensions: | Length: 36 cm Width: 29 cm Height: 35 cm |
| Weight: | 8,40 kg |
| Noise classification: | Class 2 (slight noise) |
| Power cord | |
| Cable construction: | 3 x 1,5 mm² H07RN-F |
| Cable length: | Approx. 1,5 m |
| XLR cable | |
| Cable length: | Approx. 1 m |
| Connector type: | 3-pin XLR (M); 3-pin XLR (F) |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ã10mm |
| Material: | Metal, 2,5 mm |
