Beschrijving
LED light effect with RGBWA/UV color mixing, incl. IR remote control

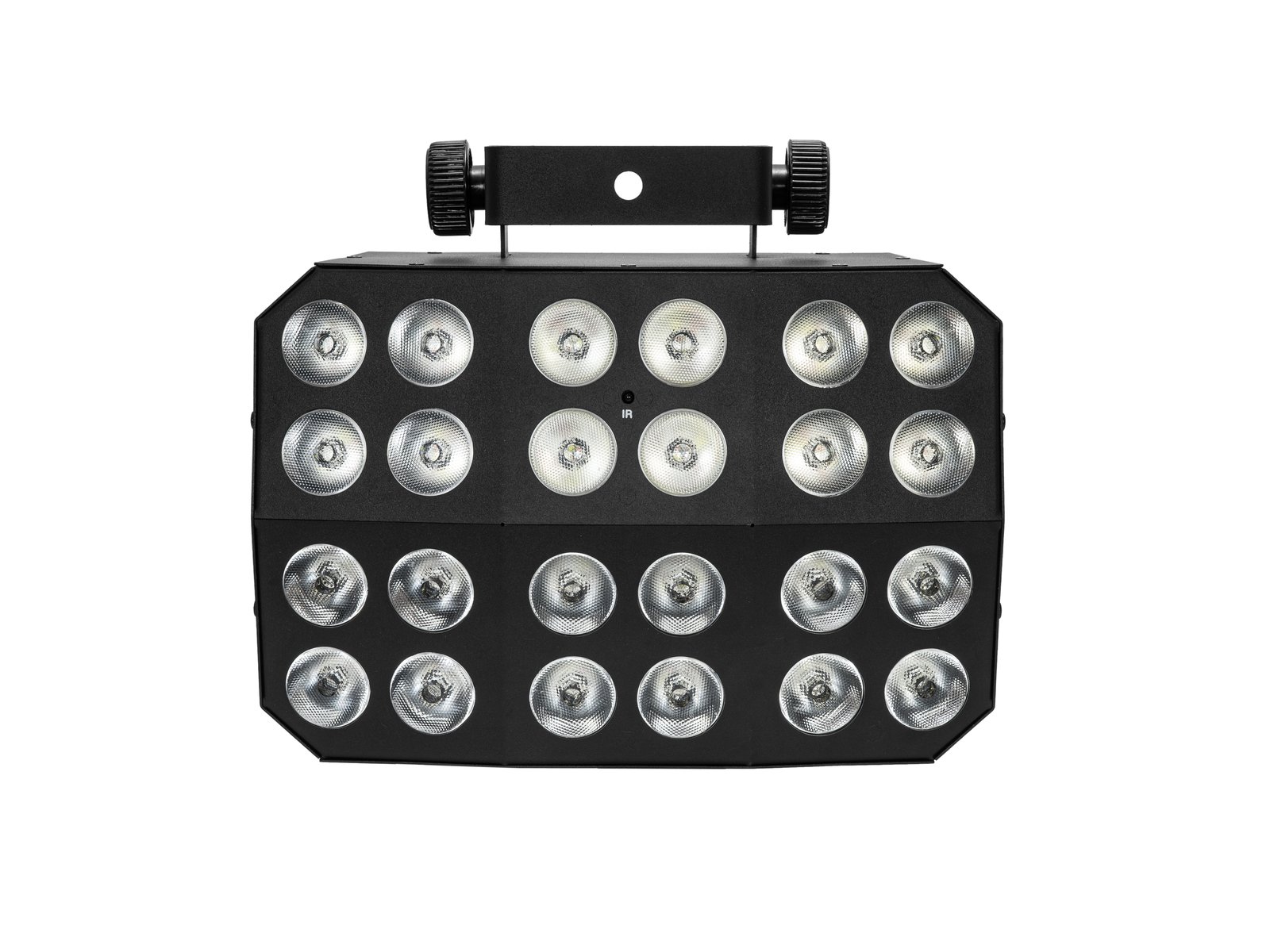

- 24 LEDs 8 W SMD 9090 6in1 HCL RGBWA/UV (homogenous color mix)
segments controlled separately - Dimmer electronic; color blend; color change
- Strobe effect; wash effect
- 8 integrated show programs
- Direct color selection for 21 preset colors
- The device is cooled by cooling fan
- Control via sound to light via microphone; IR remote control; stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
- Fixtures available for Light´J; Light Captain; Colorchief
- Flicker-free
- With a beam angle of 30°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; party room; restaurants, bars and hotels
- Application possibility: Suspended; on stand
Scope of delivery
- 1 x light effect
- 1 x user manual
- 1 x power cord
- 1 x remote control
- 1 x battery
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Power output: | IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 24 x 8 W SMD 9090 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 5; 6; 10; 10-1; 26; 36 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 2 x cooling fan |
| Control: | Sound to light via microphone; IR remote control; stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function |
| Fixtures available for: | Light´J; Light Captain; Colorchief |
| Projection: | Flicker-free |
| Beam angle: | 30° |
| Beam angle (1/2 peak): | 30° |
| Beam angle (1/10 peak): | 52° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| USB port: | 1 x type A |
| Material: | Metal |
| Dimensions: | Width: 29.1 cm Depth: 15.7 cm Height: 27.7 cm |
| Weight: | 3.01 kg |
| Noise classification: | Class 2 (slight noise) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
