Beschrijving

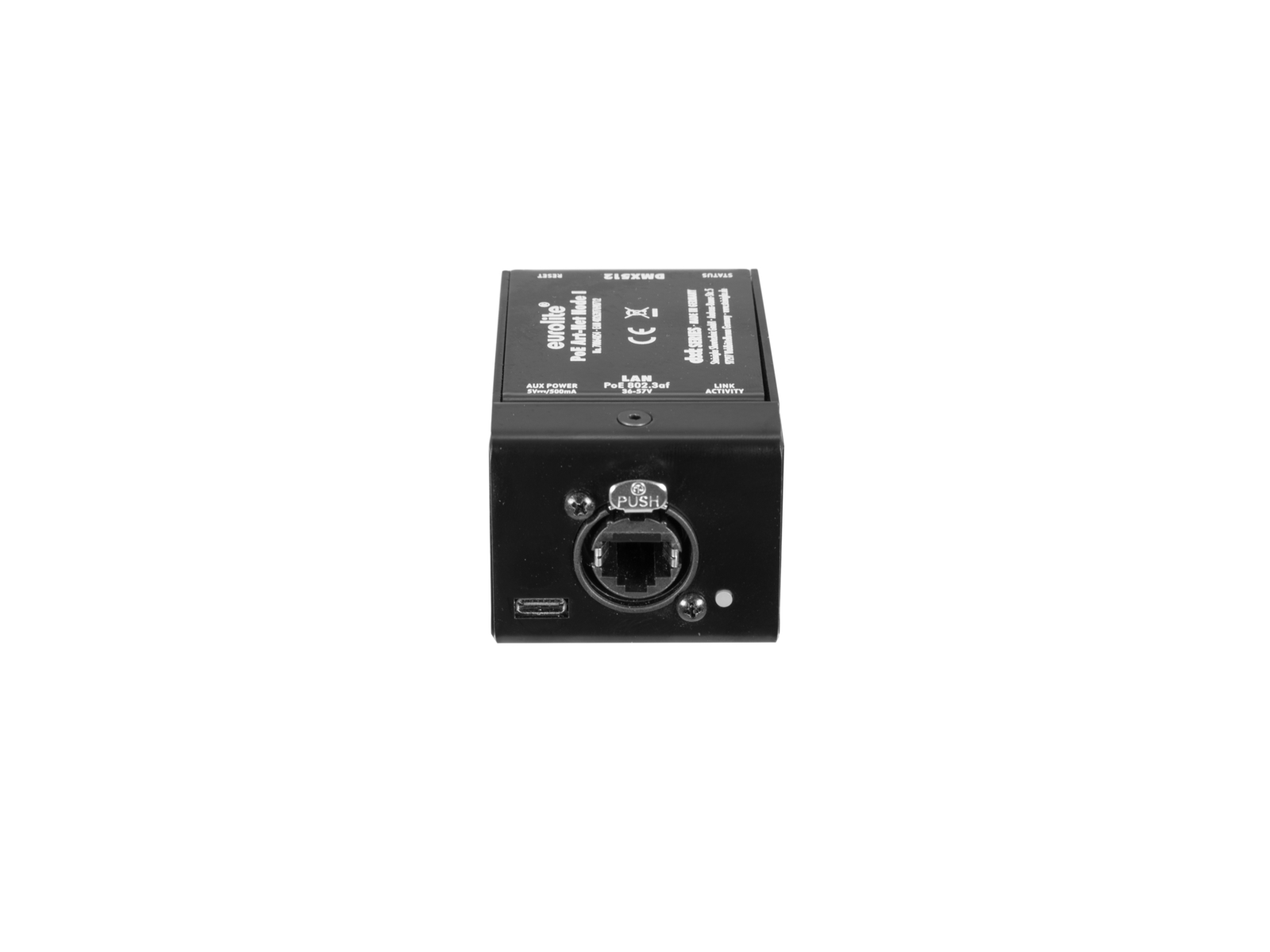

Art-Net interface for control of 512 DMX channels
- Power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
- The apps’ online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures – easily add new ones via the fixture profile editor
- DMX refresh rate: 40 Hz, 30 Hz or 20 Hz
- ArtDMX reception via Broadcast or Unicast
- Configuration with website or Art-Net
- Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe and DMX refresh rate and DMX in/out via website
- Rugged metal housing
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via ArtNet; Light´J app; Light Captain App
- Built with NEUTRIK connector
- Made in Germany
| Power supply: | 5 V DC 500 mA 37-56 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) Mains input via RJ-45 (F) mounting version |
| DMX channels: | Input 512 Output 512 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Network connection: | Protocol: Ethernet TCP/IP via RJ-45 etherCON (F) mounting version, 10/100 Mbit/s |
| Control: | ArtNet; Light´J app; Light Captain App |
| Status LED: | Signal, link |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| Dimensions: | Width: 7,8 cm Depth: 5 cm Height: 4,2 cm |
| Weight: | 290 g |
Extra informatie
| Afmetingen | 0,1750 × 0,1150 × 0,0450 cm |
|---|---|
| Levertijd | 1 dag |
