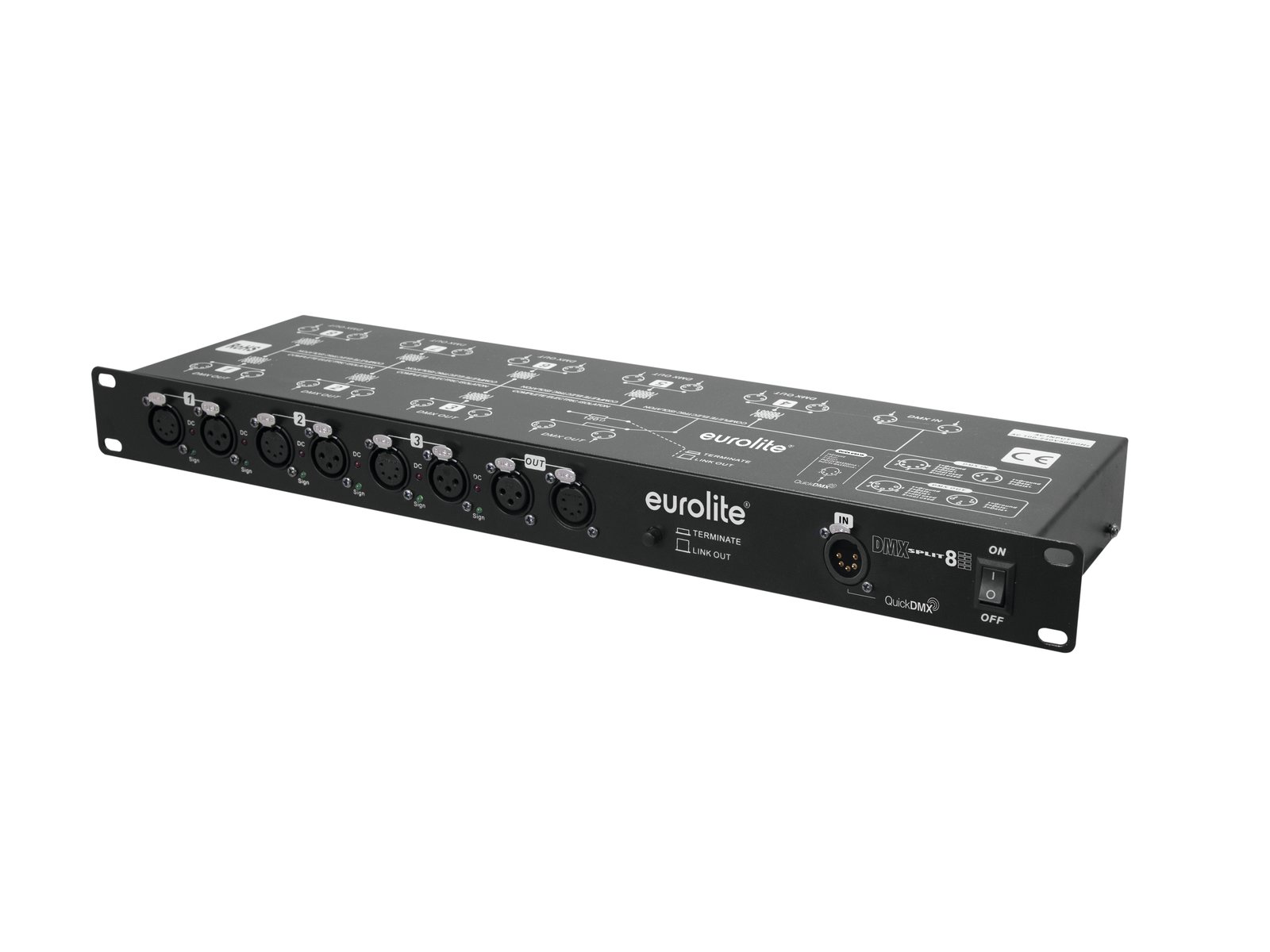

EUROLITE DMX Split 8X Splitter

Adviesprijs: 261.25

219,55

verzendkosten: € 6,95 Artikelnummer: 70064825 Categorieën: , , Voorraad: Levertijd: 2-3 werkdagen
Deel Via:

Beschrijving

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

  • DMX splitter for splitting one DMX input signal to 8 DMX outputs
  • Input and outputs XLR 3-pin and 5-pin each
  • Each DMX output with independent driver and status indicator
  • Input and outputs galvanically isolated
  • Input and outputs with a set of respective power supply and internal fuse
  • Switchable termination resistor
  • Control via DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
  • (19″) 48.3 cm rack installation 1 U

Package contents

  • 1 x device, 1 x user manual, 1 x power cord
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 5 W
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
DMX input: 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output: 8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass
Control: DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
Control elements: Bypass/terminating resistor switch, power switch
Housing design: (19″) 48.3 cm rack installation 1 U
Dimensions: Width: 48,3 cm
Depth: 14,5 cm
Height: 4,45 cm
Weight: 2,22 kg
