Beschrijving

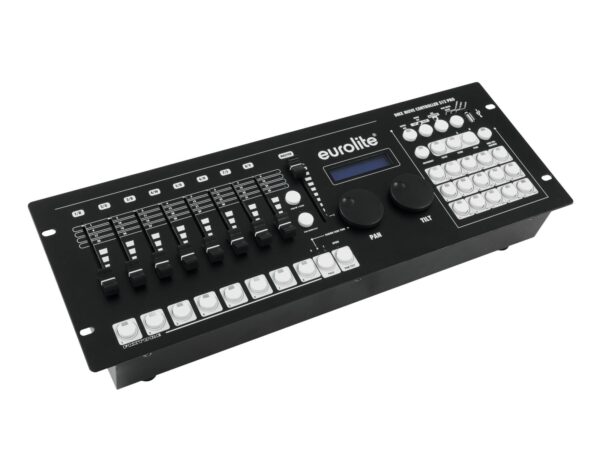

Console with motorized faders, color & motion effects (24 devices/34 channels)
- DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
- For 24 fixtures with max. 34 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
- Several movement patterns and color effects can be used simultaneously
- Manual, time-controlled or sound-controlled chase running mode
- 3 DMX fixture levels can be controlled
- 8 motorized DMX channel faders for user-friendly control
- The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes
- 2 jog wheels for pan/tilt
- Master fader for color and dimmer channels
- Blackout function
- Color-illuminated buttons provide easy orientation
- Programmable 30 scenes/chases each with 485 cues distributed over 2 page/s
- Can transmit up to 512 DMX channels
- Control via DMX; RDM
- Firmware can be updated
- (19″) 48.3 cm rack installation 4 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; Stage; mobile djs / entertainer
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x power cord
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 20 W |
IP classification: | IP20 |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Programs: | Programmable 30 scenes/chases each with 485 cues distributed over 2 page/s |
DMX channels: | Output 512 |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Control: | DMX; RDM |
Housing color: | Black |
Available storage media: | USB devices (FAT 32) |
USB port: | Typ A |
Color: | Black |
PC connect: | , firmware can be updated |
Housing design: | (19″) 48.3 cm rack installation 4 U Desktop console housing |
Dimensions: | Width: 48,3 cm Depth: 17 cm Height: 8,9 cm |
Weight: | 3,82 kg |
Noise classification: | Class 0 (no noise at all) |
Extra informatie
Afmetingen | 0,5900 × 0,2600 × 0,2000 cm |
---|---|
Levertijd | 1 dag |
