Description

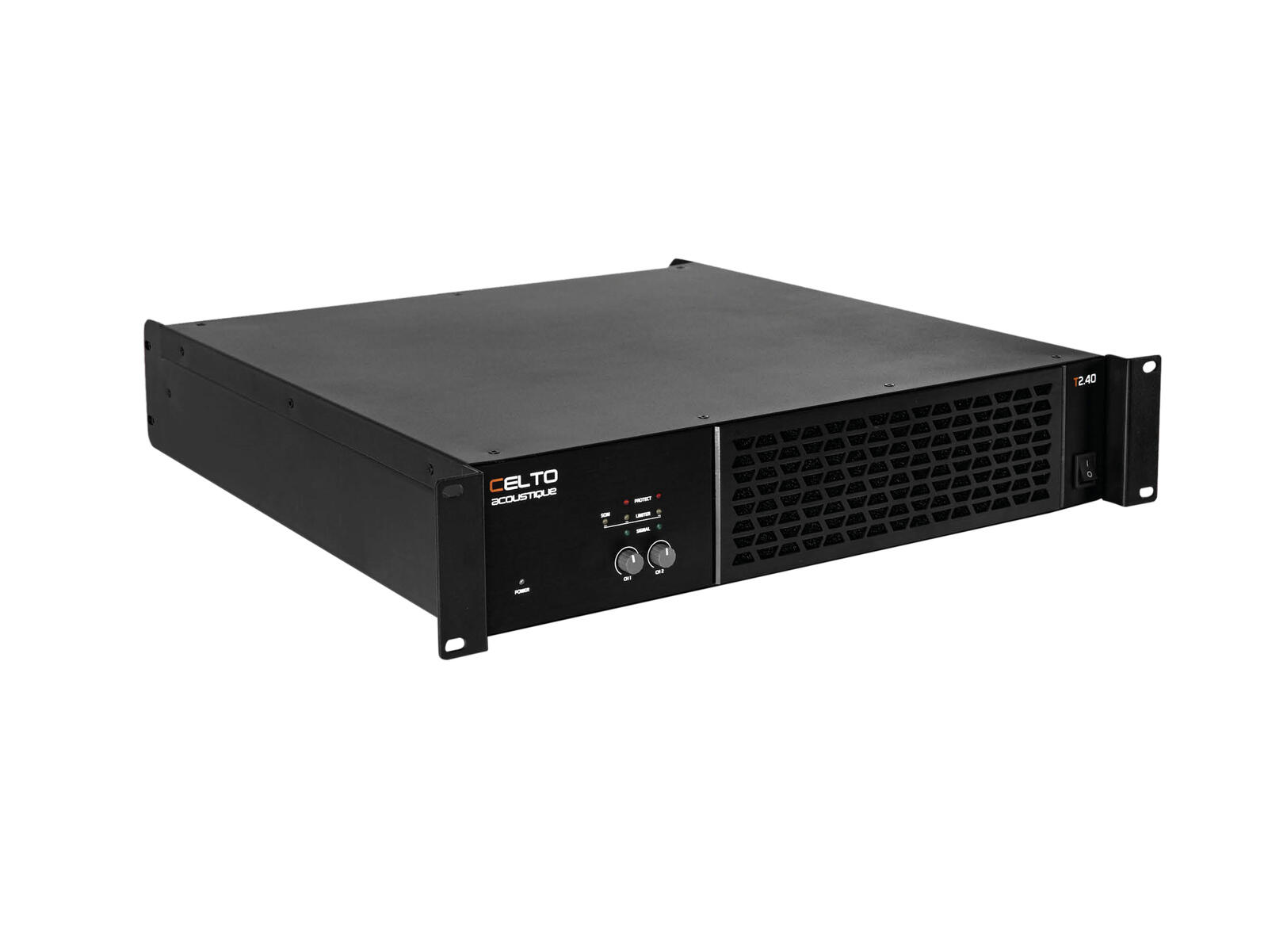

Class D touring amplifier with SMPS, 2 x 4000 W RMS (4 ohms), 2 x 2500 W RMS (8 ohms)
- (19″) 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by cooling fan
Scope of delivery
- 1 x amplifier
- 4 x foot
- 1 x power cord
| Power supply: | 230 V AC, 50 Hz |
| Protection class: | Protection class I |
| Output power: | 2 x 4000 W RMS (4 ohms) 2 x 2500 W RMS (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 1.5 m detachable |
| Cooling: | 2 x cooling fan , air flow from front to rear |
| Gain: | 34 dB/ 2.82 V |
| Housing color: | Black |
| Circuitry: | Class D |
| Slew rate: | 60 V/µs |
| Damping factor: | >800 |
| Control elements: | Power switch, level control per channel |
| Status LED: | Power, signal, limit, protect, SOM |
| Connections: | Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: speaker via 2 x 4-pol SpeakON mounting version (F) |
| Housing design: | (19″) 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 46.8 cm Height: 8.8 cm |
| Weight: | 15.60 kg |
