Description

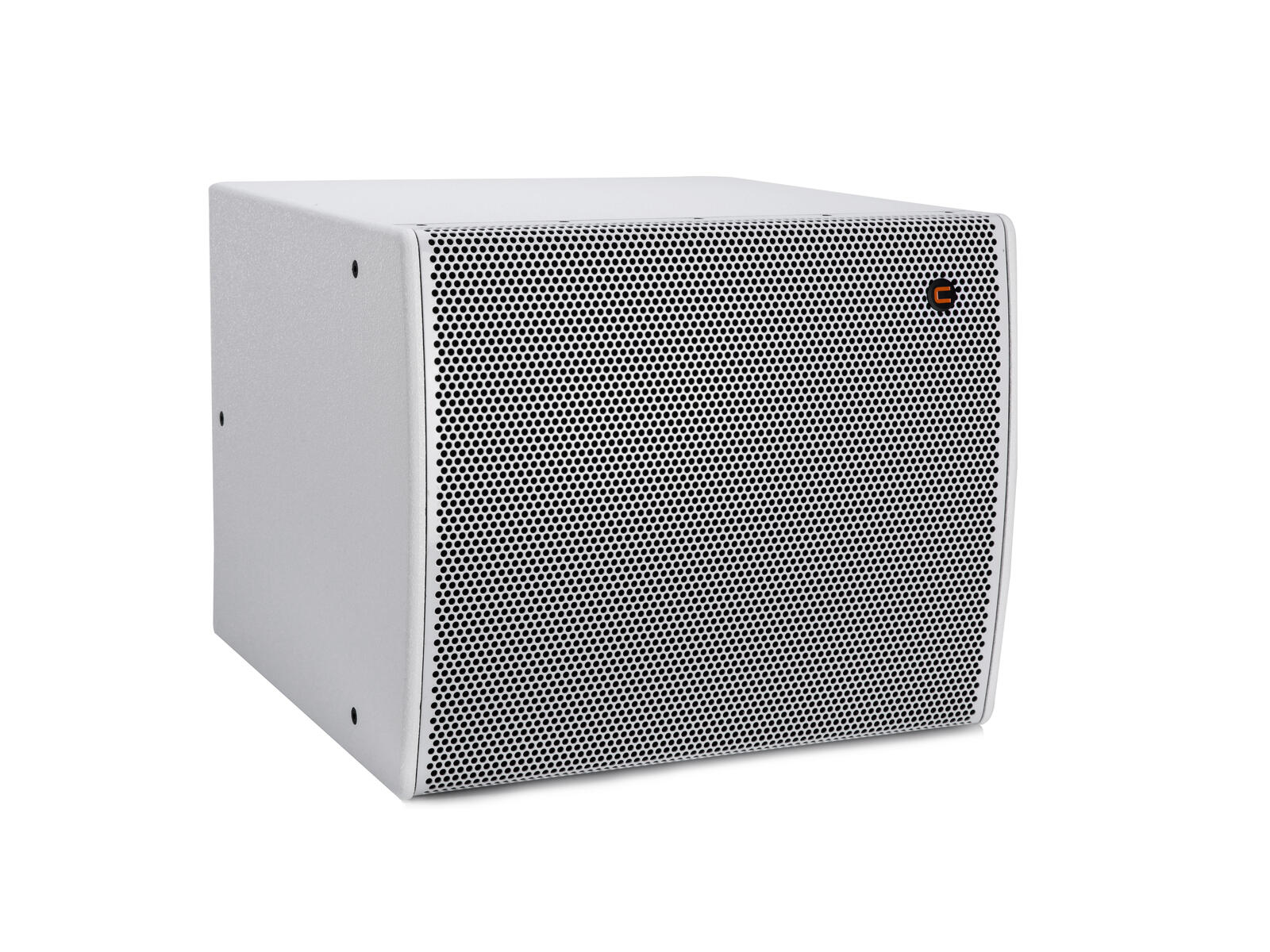

Impressive 17″ woofer, compact design
- Real 700 W RMS with accurate deep tones
- Long excursion 17.5″ LF drivers with ±8.5mm linear Xmax
- Incredible deep tones from ultra compact cabinet
- High efficiency for incredible SPL to size ratio
- Six M8 flying points for added versatility
- Heavy braced cabinet for vibration free dynamic response
- Birch multiplex cabinet with tongue and groove assembly
- With rigging points
- Any RAL color available on request
- Available in various colors
- For application areas such as: Theater; sports centres/gyms; clubs/dancing school; restaurants, bars and hotels
Scope of delivery
- 1 x bass
| Power: | Program: 1400W Rated: 700W RMS |
| Frequency range: | 38 – 1200 Hz |
| Sensitivity: | 99 dB |
| Max. SPL: | 133 dB |
| Dispersion angle: | Omnidirectional |
| Impedance: | 8 ohms |
| Flying points: | 6 x M8 thread |
| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | Active mode only Recommended High-pass 30 Hz, 24db/oct Low-pass 120 Hz, 24db/oct |
| Speaker: | 1 x woofer 17.5″ with ferrit magnet Basket material: aluminum Voice coil lows 3.5″ |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Material: | Birch multiplex, 18 mm, CNC made with tongue and grove assembly |
| Color: | White, textured coating, painted; any RAL color available on request |
| Dimensions: | Width: 59.6 cm Depth: 60.1 cm Height: 49 cm |
| Weight: | 31.30 kg |
Additional information
| Dimensions | 0,0000 × 0,0000 × 0,0000 cm |
|---|---|
| Levertijd | 1 dag |
