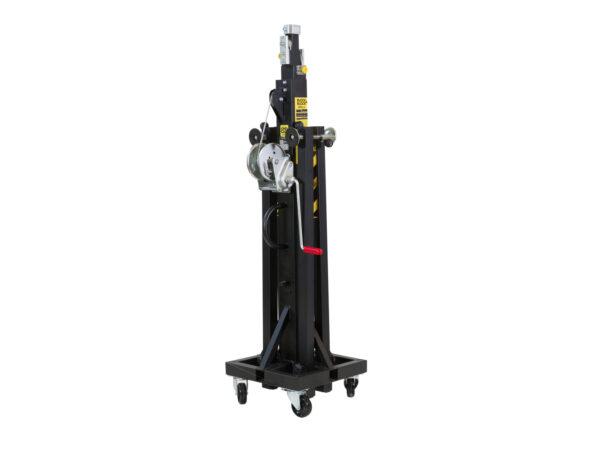

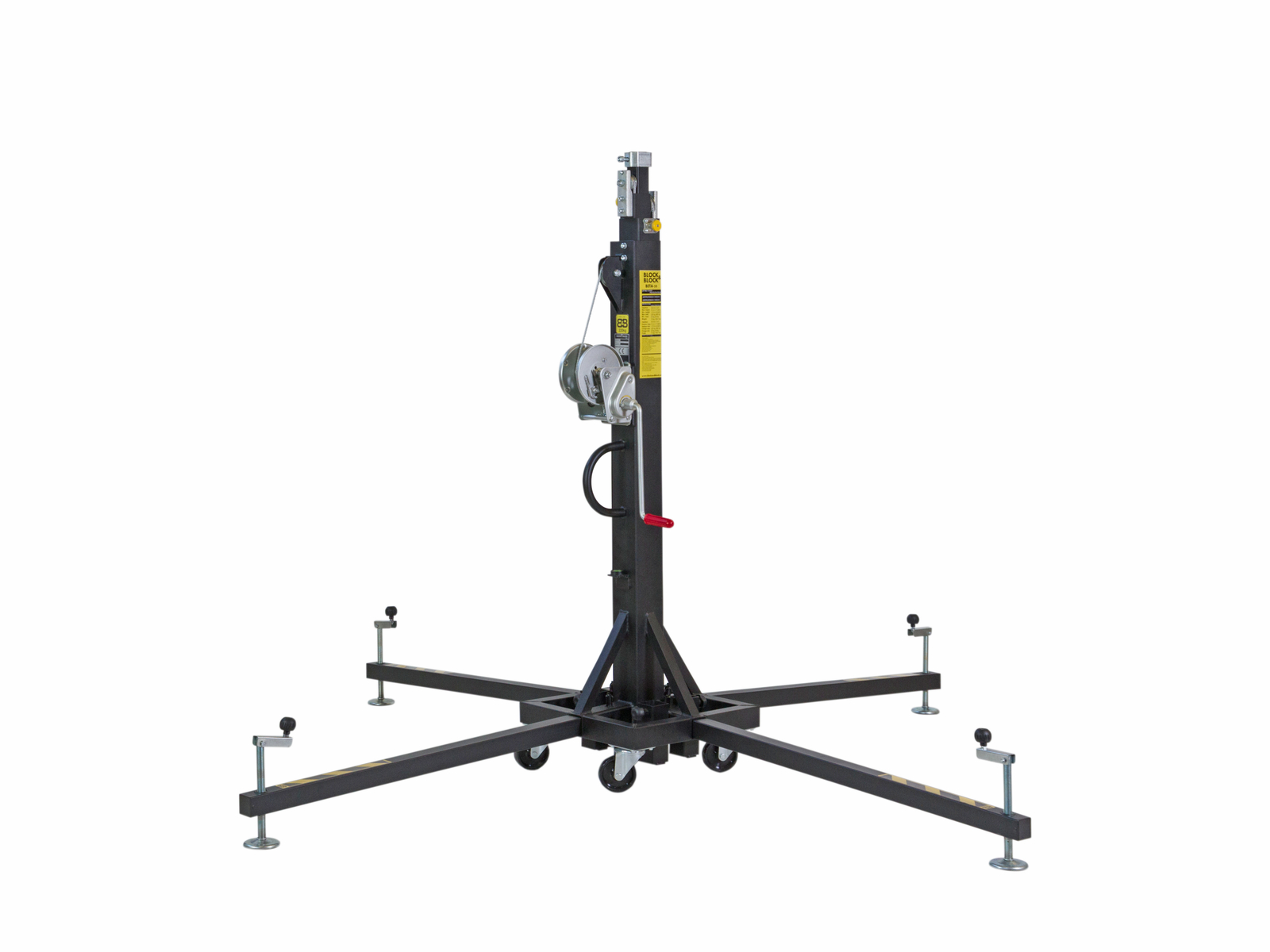

BLOCK AND BLOCK BETA-50 Truss lifter 220kg 5.3m

Adviesprijs: 1,748.75


verzendkosten: € 6,95 Artikelnummer: 59000413 Categorieën: , , , Voorraad: Levertijd: 2-3 werkdagen
Deel Via:


High-quality ground support for weights up to 220 kg, made in EU

  • Five-part telescopic ground support
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted
  • AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6×19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • With BGV-C1 test certificate
Maximum carrying capacity: 220 kg
Minimum load: 25 kg
Height: Maximum: 530 cm
Minimum: 170 cm
Attachment system: 38mm (BLOCK AND BLOCK)
Type (general stands): Truss lifter
Base area: 2,11 m x 2,11 m x
Weight: 72,00 kg

Extra informatie

Afmetingen 0,4700 × 0,4700 × 1,7850 cm
Levertijd 1 dag
